Product Description

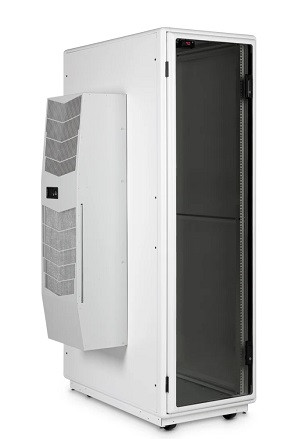

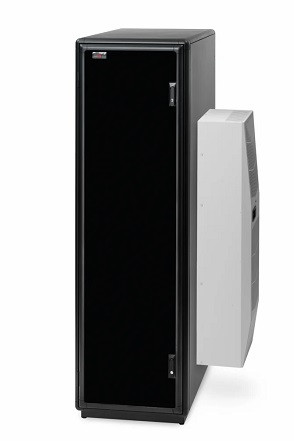

Advanced air-conditioned enclosures are specifically designed to completely control internal temperature. Air-conditioned enclosures are generally for locations that do not have room air-conditioning or constant air-conditioning.
These may be located on a production floor, in a closet, or in an office where the air-conditioning gets turned off on the weekends.The Air Conditioned enclosures have an internal closed loop cooling system and the air that is used to cool the condensers is the ambient room air and is exhausted back into the room unless special ducting is set up to exhaust the hot air out of the room.
INCLUDES:
• Aluminum Extruded Welded Frame
• Base
• Casters (4) & Leg Levelers
• Three (3) Pair “L” Shaped Adjustable Reducer Rails to create a 19” Rack Mounting
• M6-40 Hardware Pack
• Lexan Door w/Aluminum Extruded Frame, Smoked Gray, (2) Lockable Handles,
• Solid Steel Rear Door w/ (2) Lockable Swing Handles
• Side Panels Externally Removable-One side Modified for AC Unit
• 20,000 BTu/hr Side –Mount A/C Unit-115V, Manuals, w/Malfunction Switch
• Temperature Indicator -120Vm Remote Sensor w/3’ Lead, Temp Display “F”,
• Solid Top Panel or
• Solid Bottom Panel with Cable Access Door
• Floor mount Bracket for 42” Deep Cabinets, mounts to side base & floor w or w/o casters
• Gasket-AC-Complete sealing of front & rear Doors and top and side panels using closed cell foam.
Overall Dimensions:
Height: 77.89"
Width: 32.33"
Depth: 44:42
Internal Useable Dimensions:
Height: 70:09" (40U)
Width: 28:09" ( 19"Rackmount)
Depth: 42.00"
<b>NOTICE: Enclosure must be bolted to floor prior to mounting AC Unit to avoid Risk of Tipping Over</b>
For more information call (800)-686-5312 or email: Sales@MainlineComputer.com
A/C Cooling:
Note: All Air-Conditioned Racks are Special Order & Non-Returnable" Mainline Computer Products will assist you in determining requirements. Pricing does not include shipping charges, please contact Sales@MainlineComputer.com or call (800) 686-5312 for a freight quote.
