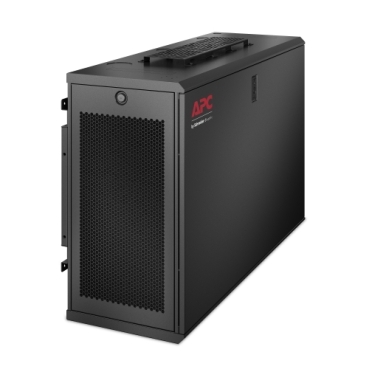

Product Description
Ideal for retail, healthcare, educational facilities, and light industrial spaces, the low-profile APC wall
mount rack offers an efficient solution for deploying hyper-converged servers and networking for edge
computing applications. The rack enclosure allows longer depth equipment to be wall-mounted, up to
30 inches deep. A detachable wall bracket and optional casters (sold separately) allow the server rack
to be mounted on either the wall or stand alone on the floor. A dust filter and two integrated fans allow
deployment in light-industrial environments. Shock packaging is included and allows optional equipment
pre-installed before shipment, speeding IT deployment. APC Smart-UPS, APC NetBotz Physical and
Environmental Security, and APC EcoStruxure IT can be configured with this cabinet (sold separately).
6U Vertical wall mount cabinet, 30" mounting depth, 250lb weight capacity, 19" rack width, ships fully
assembled, MERV 5/G3 dust filter and 120v integrated fans included, input connector IEC 60320 C13, 5
year APC warranty.
Main
Main Input Voltage 100 V
120 V
Input Connection Type IEC 60320 C13
Number of rack unit 6U
Physical
Height 25.51 in (64.8 cm)
Width 13.90 in (35.3 cm)
Depth 38.11 in (96.8 cm)
Net Weight 80.01 lb(US) (36.29 kg)
Color Black
Mounting Support Wall
Mounting preference No preference
Mounting Mode Not rack-mountable
Mounting position Vertical
Maximum Mounting Depth 30.00 in (76.2 cm)
Minimum Mounting Depth 30.00 in (76.2 cm)
Rack Width 19"
Permanent permissible load 250 lb(US) (113.40 kg) dynamic
250 lb(US) (113.40 kg) static
