Product Description

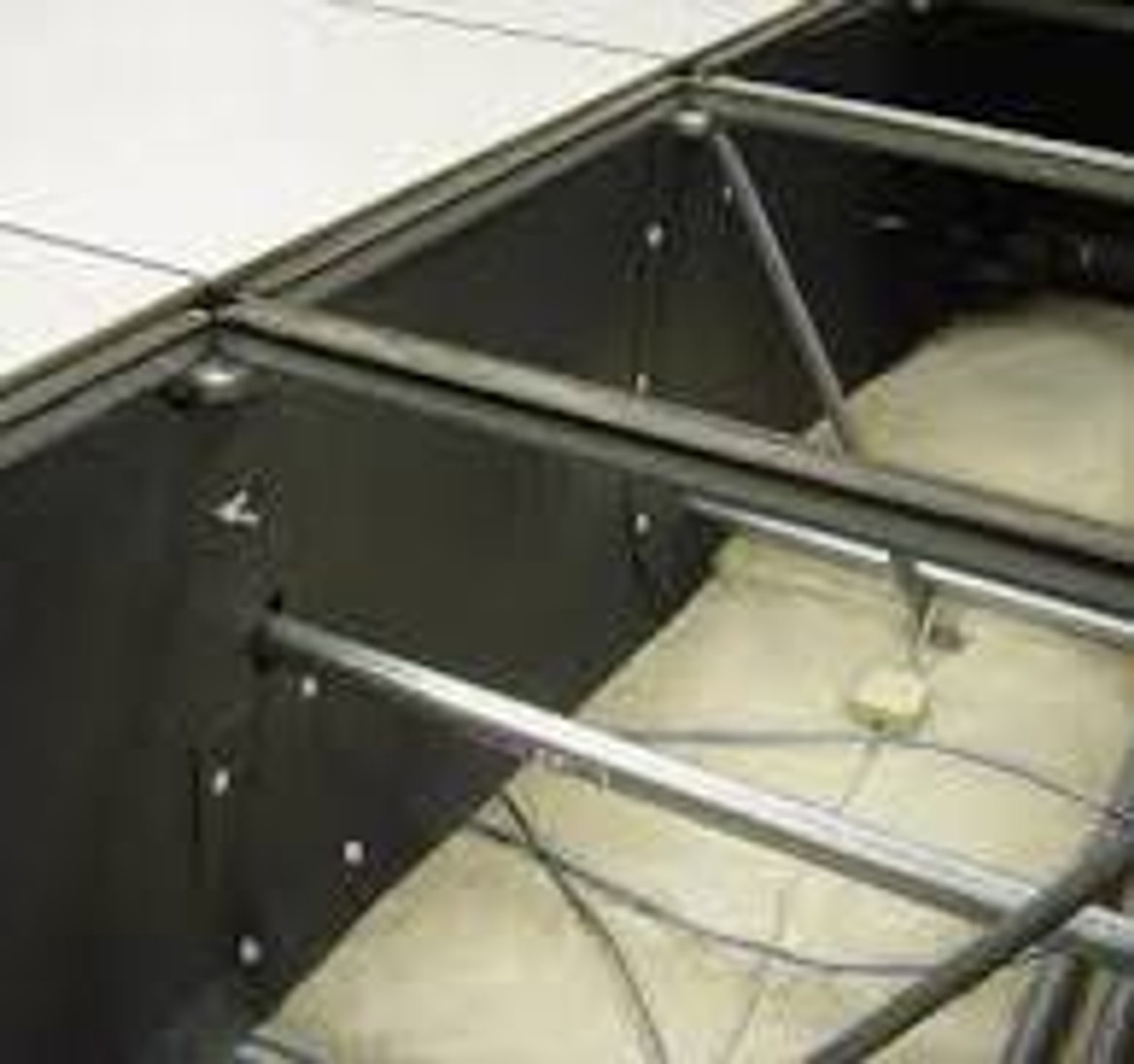

ADAPTABLE: Creating dedicated cold aisles and partitioning off unoccupied raised floor areas with PlenaForm baffles
increases static pressure, delivering a higher volume of cooling through perforated tiles. The Venturi effect is attained
as air flow distribution is directed from the CRAC units to further distances, improving equipment cooling.
PlenaForm baffles are scored both vertically and horizontally so that sections can be removed, or new sections
added, to meet any height or width requirement. All angles of bend radius may be accommodated, and the continuous
pop-out hole pattern allows attachment to any raised floor pedestal type or height.
PF-2448 PlenaForm baffle (single baffle)
Baffle weight: approx. 1.75 lbs. each (.79 Kg)
For product estimator go to: www.plenaform.com
• Cuts easily for passage of cable ties, conduit, cable trays
• Fits any raised floor pedestal style or raised floor height
• Non-Conductive, Non-Hygroscopic, Inert
• RoHS and WEEE Compliant
SUSTAINABLE: Velocity is the time rate of motion, therefore
velocity pressure is the pressure caused by air in motion.
When air from a CRAC unit is forced through a partitioned air
flow space, static pressure is created. Without dedicated
partitioning, as the air moves further away from a CRAC unit,
the air velocity decreases. To maintain velocity pressure to
particular ‘hot zones’, PlenaForm baffles help maintain the
static pressure further away
PF-2448-12 PlenaForm baffle kit (twelve baffles)
Pack of twelve 25 lbs. (11.12 Kg)
Includes 72 releasable cable ties and 48 screw rivets
Baffle Dimensions: 24” x 48” x .040” (609.6 x 1219.2 mm)
Conversion: Inches x 25.4 = mm mm x .03937 = Inches
For product estimator go to: www.plenaform.com
• Cuts easily for passage of cable ties, conduit, cable trays
• Fits any raised floor pedestal style or raised floor height
• Non-Conductive, Non-Hygroscopic, Inert
• RoHS and WEEE Compliant
