Product Description

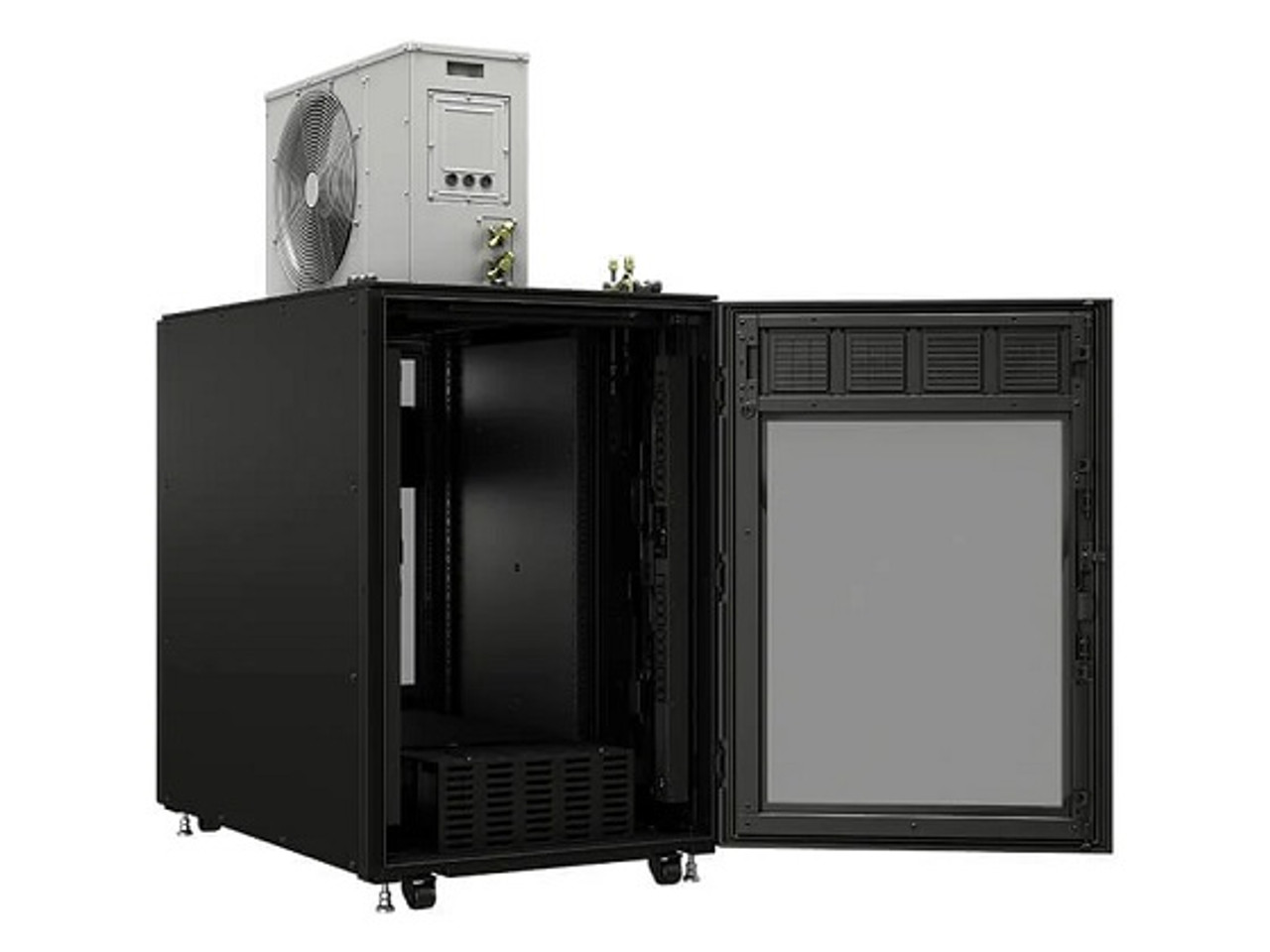

Vertiv™ SMARTCABINET ID 24U 3.5kw -VS3354
Delivering up to 7.0 kW of Cooling with IP54 environmental protection for critical IT deployed in demanding environments.
High Cooling Availability
The Vertiv™ SmartCabinet™ ID micro data center offers a comprehensive IT solution for demanding environments. The SmartCabinet ID incorporates a state-of-the-art zero-U cooling design that offers full rack utilization for critical IT equipment, an emergency fan for ensured continuous airflow, multiple environmental sensors for increased system visibility and precision, a power management block that delivers reliable power to key integrated components, and optional smart locking handles that can be integrated into the DCIM system for full authorization and access control. All of this is enclosed in an IP54 rated IT rack, providing robust protection from the harsh surrounding environments where dust and humidity could severely impact system performance and equipment life-expectancy. By isolating the IT equipment housed inside the rack, offering environmental monitoring, power management, and increased physical security, the SmartCabinet ID provides full protection and peace of mind to IT system managers.
Key Features
-
Full 24U rack space for standard 19" IT equipment (24U usable within the cabinet)
-
Pre-integrated cooling module delivering 3.5 kW of capacity in a zero-U format (cooling unit consumes no usable rack U space)
-
IP54 rated enclosure—protects internal equipment from dust, humidity and harsh environmentsEmergency backup fan for airflow continuity in the event of cooling system disruption 9” HMI (Human-Machine Interface) display panel for local monitoring and status reading; remote monitoring capabilities via network link (optional)
-
Optional electronic locking handles for enhanced access control and security in non-traditional IT environments
-
Zero-U cooling design means full rack space is available for IT gear—not consumed by thermal system components
-
Rugged design suited for industrial, outdoor shelter, edge, and mission-critical applications (e.g., manufacturing, transportation, utility, retail, government)
Technical Specifications
| Specification | Value |
|---|---|
| Model | VS3354 |
| Rack Usable Height | 24 U |
| Cooling Capacity | 3.5 kW |
| Enclosure Protection Rating | IP54 |
| Dimensions (H × W × D) | 47.2 in × 31.5 in × 47.2 in (1200 mm H × 800 mm W × 1200 mm D) |
| Weight | 507.1 lbs (≈230 kg) |
| Rack Width | 800 mm (31.5”) |
| Depth | 1200 mm (47.2”) |
| Form Factor | Enclosed cabinet with integrated cooling module |
| Zero-U Cooling | Yes (cooling module occupies zero rack U space) |
| HMI Display | 9” integrated panel for monitoring and control |
| Environment | Suitable for harsh environments (dust, humidity, industrial) |
What’s Included
-
The Vertiv SmartCabinet ID VS3354 cabinet (24U, IP54 enclosure)
-
Pre‐integrated cooling module delivering 3.5 kW cooling capacity
-
9” HMI display panel pre-installed for monitoring/control
-
Emergency backup airflow fan integrated
-
Environmental sensors (temperature, humidity, leak detection) built into cabinet infrastructure Cabinet delivered factory-assembled (or pre-configured) for rapid deployment
-
Standard factory warranty (check reseller terms)
Note:
Power distribution unit (PDU), UPS systems, and IT equipment are not included unless specified—those must be selected separately and installed inside the 24U space. Some vendors note “rPDU and UPS sold separately.”
